Emotiva XPA-11 Gen3 – Home Theater Eleven Channel Power Amplifier

Description

Description:
The Emotiva XPA-11 Gen3 is a flagship eleven-channel power amplifier tailored for high-end home theater systems. Designed to power sophisticated setups such as 7.1.4 or 9.1.2 Dolby Atmos configurations, this amplifier delivers exceptional performance, ensuring crystal-clear sound, impressive dynamics, and immersive audio. Its modular Class H topology efficiently balances power and sound quality, while its rugged build and advanced technology provide unmatched reliability. Whether it’s blockbuster movies, concert recordings, or gaming, the XPA-11 Gen3 sets a new benchmark for home theater amplification.

Specifications:

• Channels: 11
• Power Output:
  • 300 watts per channel for the first three channels at 8 ohms (high power modules)
  • 65 watts per channel for the remaining eight channels at 8 ohms (low power modules)
  • 300 watts per channel for the first three channels at 4 ohms
  • 100 watts per channel for the remaining eight channels at 4 ohms
• Amplifier Topology: Fully modular, high-efficiency Class H
• Circuitry Type: Differential Reference Circuitry
• Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
• THD (Total Harmonic Distortion): < 0.005%
• Signal-to-Noise Ratio: > 115 dB
• Input Sensitivity: 1.2V
• Input Impedance: 23.5 kOhms
• Cooling System: Advanced fan-based cooling
• Protection Circuits: Overcurrent, over-temperature, and short-circuit protection
• Dimensions: 17″ x 6.25″ x 19″ (WxHxD)
• Weight: Approx. 55 lbs (varies with configuration)

Features:

1. Eleven Channels of Power:
   Supports advanced multi-channel configurations such as 7.1.4 or 9.1.2 Dolby Atmos for an immersive audio experience.
2. High and Low Power Modules:
   Provides 300 watts to three primary channels (for mains) and 65-100 watts to eight secondary channels (for surrounds and heights).
3. Class H Amplifier Technology:
   Combines efficiency with pristine sound reproduction, delivering dynamic range and clarity.

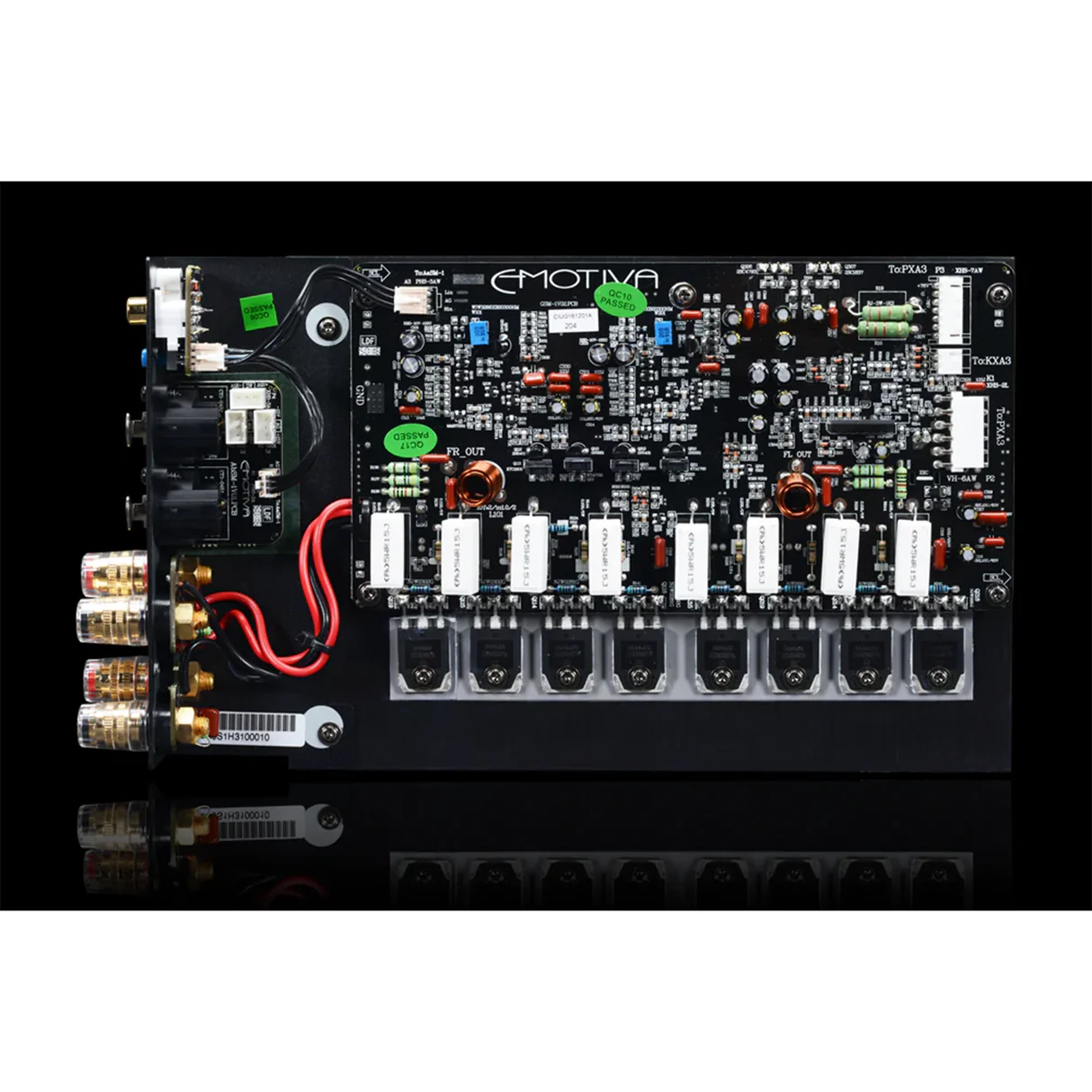

4. Modular Design:
   Allows for customization and future upgrades, ensuring adaptability to evolving audio systems.
5. Superior Audio Quality:
   Differential Reference Circuitry ensures precise, distortion-free, and immersive audio reproduction.
6. Advanced Protection Systems:
   Built-in safeguards protect the amplifier and connected speakers from electrical faults.
7. Efficient Cooling Mechanism:
   Quiet fan-based cooling maintains optimal performance during heavy use, ensuring long-term reliability.
8. Robust Build Quality:
   Features a solid steel chassis with a sleek aluminum faceplate for durability and premium aesthetics.
9. Gold-Plated Connectors:
   High-quality connectors ensure excellent signal transmission and resistance to corrosion.
10. Versatile Compatibility:
    Ideal for high-performance home theater setups, supporting a wide range of speaker configurations and applications.

The Emotiva XPA-11 Gen3 is a cutting-edge eleven-channel amplifier that offers unparalleled power, precision, and adaptability, making it the ultimate choice for audiophiles and home theater enthusiasts who demand the very best.
